Wahren Triplex

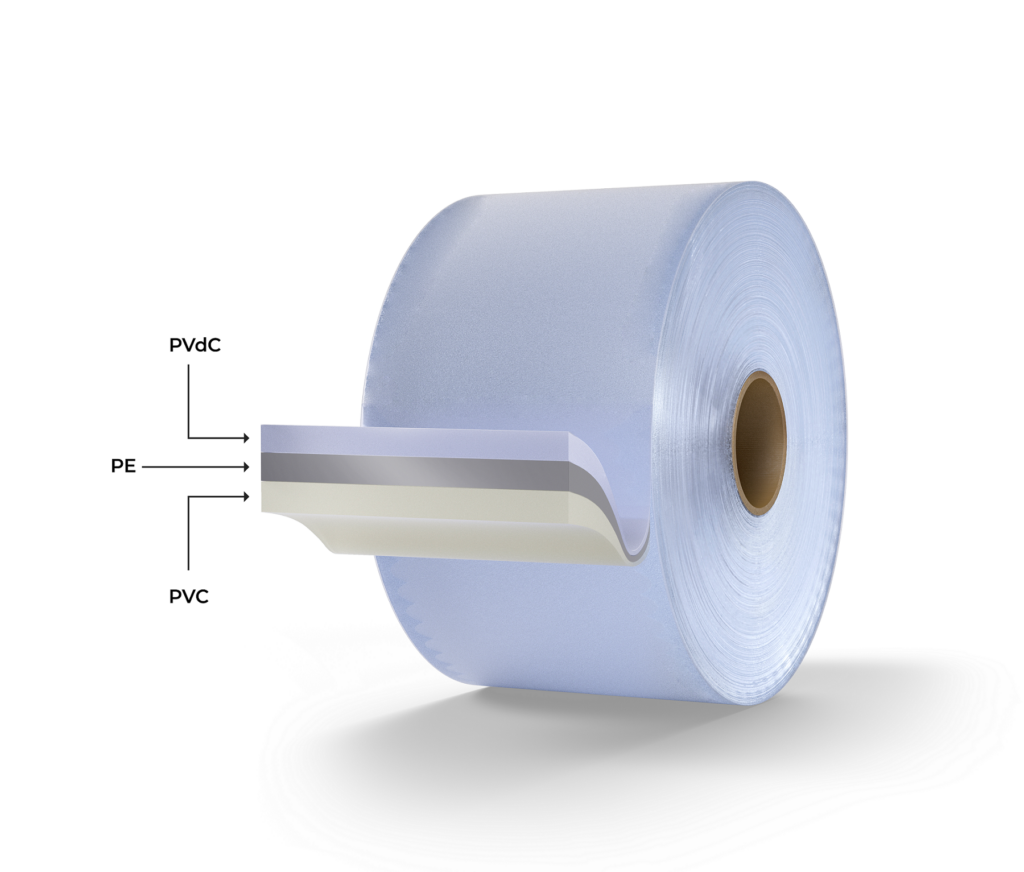

PVC Rigid Thermoformable Film laminated with PE and coated with PVDC,
Engineered to deliver excellent thermoforming performance, superior cavity stability, and enhanced mechanical strength.
The advanced multilayer structure offers outstanding oxygen and water vapour barrier protection, ensuring improved product integrity, extended shelf life, and reliable performance for moisture- and oxygen-sensitive primary pharmaceutical formulations.
Applications
Triplex Film is specifically designed for blister packaging used in the pharmaceutical industry. The film is thermoformed to create cavities (blisters) for individual packaging of Tablets , Capsules, SoftGels, and other solid dosage forms . The formed pockets are then sealed with suitable lidding materials to maintain product integrity and extend shelf life.
Product Range
| Product Name | Specification |
|---|---|
| Triplex Film | 250 / 40 / 25 – C1 |
| Triplex Film | 250 / 60 / 25 – C1 |
| Triplex Film | 250 / 90 / 25 – C1 |
| Triplex Film | 250 / 120 / 25 – C1 |
Product Range
- 250 micron PVC / 25 micron PE / 60 gsm PVDC
- 250 micron PVC / 25 micron PE / 120 gsm PVDC
- 350 micron PVC / 30 micron PE / 90 gsm PVDC
- 350 micron PVC / 25 micron PE / 150 gsm PVDC
Technical Specification
| Sr. No. | Test Parameters | Unit | 250/25/40 | 250/25/60 | 250/25/90 | 250/25/120 |
|---|---|---|---|---|---|---|
| 1 | Thickness of PVC Film | Micron | 250 ±10% | 250 ±10% | 250 ±10% | 250 ±10% |
| 2 | Thickness of PE Film | Micron | 25 ±10% | 25 ±10% | 25 ±10% | 25 ±10% |
| 3 | Total Film Thickness | Micron | 310 ±10% | 310 ±10% | 310 ±10% | 310 ±10% |
| 4 | GSM of PVC Film (Clear) | g/m² | 337.5 ±5% | 337.5 ±5% | 337.5 ±5% | 337.5 ±5% |
| GSM of PVC Film (Opaque) | g/m² | 340.0 ±5% | 340.0 ±5% | 340.0 ±5% | 340.0 ±5% | |
| 5 | GSM of PE Film | g/m² | 23 ±10% | 23 ±10% | 23 ±10% | 23 ±10% |
| 6 | GSM of PVDC Layer | g/m² | 40 ±3 | 60 ±3 | 90 ±3 | 120 ±3 |
| 7 | Total GSM (Clear) | g/m² | 400.5 ±10% | 420.5 ±10% | 450.5 ±10% | 480.5 ±10% |
| Total GSM (Opaque) | g/m² | 403.0 ±10% | 423.0 ±10% | 453.0 ±10% | 483.0 ±10% | |
| 8 | Adhesion Test (Scotch Tape Test) | — | Should Pass | Should Pass | Should Pass | Should Pass |
| 9 | Dimensional Stability (Longitudinal @140°C / 5 min) | % | -5 Max | -5 Max | -5 Max | -5 Max |
| 10 | Dimensional Stability (Transverse @140°C / 5 min) | % | +2 Max | +2 Max | +2 Max | +2 Max |
| 11 | Tensile Strength (Min.) | kg/cm² | 450 | 450 | 450 | 450 |
| 12 | Elongation at Break (Min.) | % | 30 | 30 | 30 | 30 |
| 13 | Heat Seal Strength | kg/cm | 0.3 Min | 0.3 Min | 0.3 Min | 0.3 Min |
